Sandvik Coromant

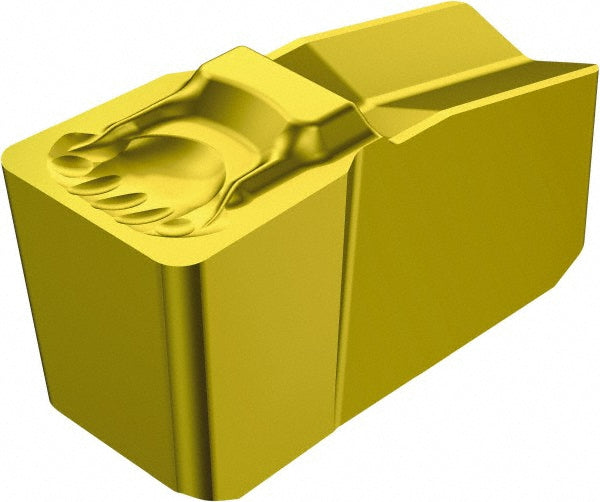

N151.2-A250-60-6G 235 Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 5737111
MFR# 5737111ISO/ANSI# N151.2-A250-60-6G 235Cat# N151.2-A250-60-6G 235Series T-Max Q-Cut
$37.13List $46.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5737111 is a N151.2-A250-60-6G 235 solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Chip breaker6G
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0310
Cutting height0.4062
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat size60
Insert size60
Insert styleN151.2
Insert thickness0.4062
Iso codeN151.2-A250-60-6G 235
Manufacturers catalog numberN151.2-A250-60-6G 235
Manufacturer grade235
Maximum corner radius0.0330
Minimum corner radius0.0290
Multi use toolYes
Overall length0.3335
Overall width in1/4
RakeNeutral
Rake angle7.00
