Sandvik Coromant

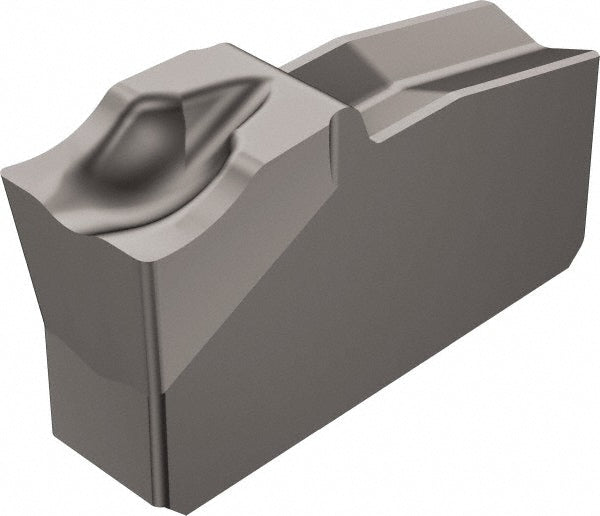

Solid Carbide Insert, Grade H13A - Sandvik Coromant 5737202
MFR# 5737202Cat# N151.2-500-5E H13ASeries T-Max Q-Cut
$17.82List $22.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5737202 is a solid carbide indexable insert, grade H13A.
Specifications
Chipbreaker5E
Coating processUncoated
Corner radius0.0079
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size50
Insert size code50
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-500-5E H13A
Manufacturer gradeH13A
Overall length0.2677
Overall width0.1969
Relief angle7.00
