Sandvik Coromant
N151.2-500-40-4P H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5737224
MFR# 5737224ISO/ANSI# N151.2-500-40-4P H13ACat# N151.2-500-40-4P H13ASeries T-Max Q-Cut
$21.93List $28.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description

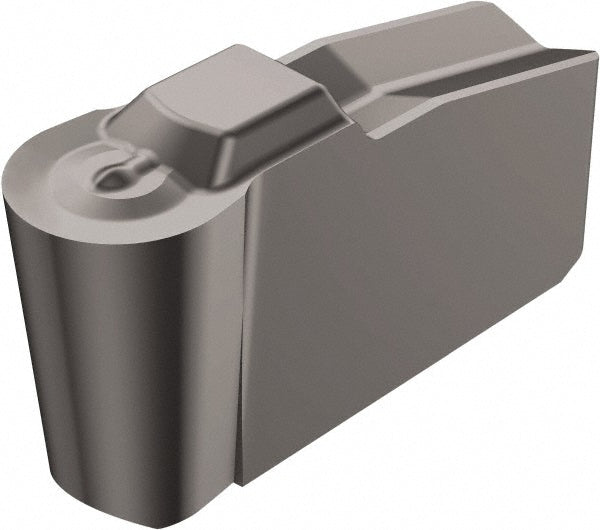

The Sandvik Coromant 5737224 is a N151.2-500-40-4P H13A solid carbide indexable insert, grade H13A.
Specifications
Chip breaker4P
Cutting height0.3191
Cutting width0.1969
Insert handNeutral
Insert materialSolid Carbide
Insert seat size40
Insert size40
Insert styleN151.2
Insert thickness0.3191
Iso codeN151.2-500-40-4P H13A
Manufacturers catalog numberN151.2-500-40-4P H13A
Manufacturer gradeH13A
Multi use toolYes
Overall length0.2776
Overall width0.1969
RakeNeutral
Rake angle7.00
