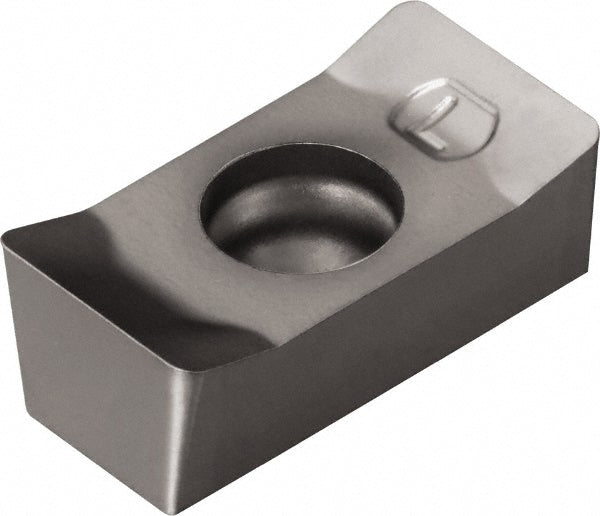

N331.1A-05 45 08H-WLH13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5737244

Sandvik Coromant

N331.1A-05 45 08H-WLH13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5737244

MFR# 5737244ISO/ANSI# N331.1A-05 45 08H-WLH13ACat# N331.1A-05 45 08H-WLH13ASeries N331.1A

$17.64List $22.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeH13A
MaterialSolid Carbide

Description

The Sandvik Coromant 5737244 is a N331.1A-05 45 08H-WLH13A solid carbide indexable insert, grade H13A. Suited for cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeN331.1A-05 45 08H-WLH13A
Chip breakerWL
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1142
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code054508
Insert styleN331.1A
Iso codeN331.1A-05 45 08H-WLH13A
Length0.2244
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-05 45 08H-WLH13A
Manufacturer gradeH13A
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeK20; N15; S20
Maximum depth of cut0.2244
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1752
Thickness range0.1750 to 0.1850
Width0.3740
