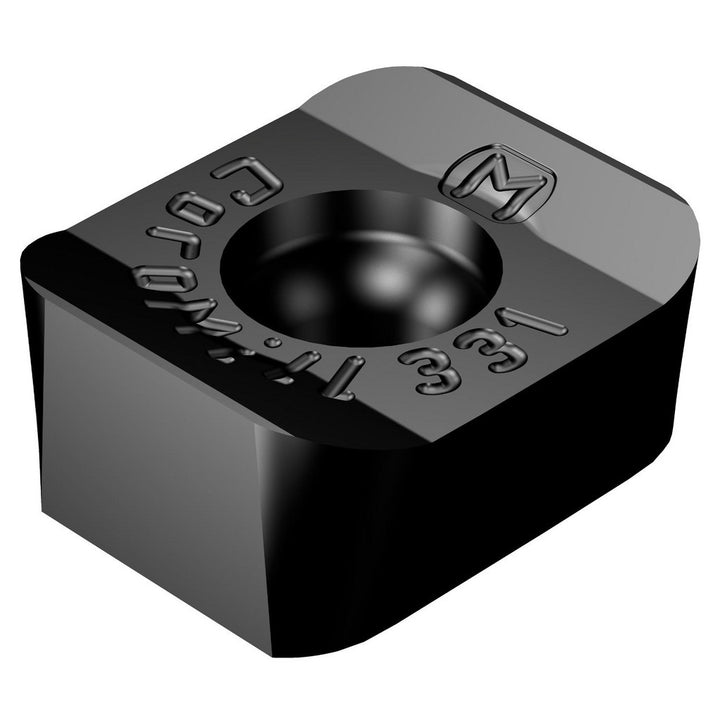

N331.1A-08 45 08E-KM3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5737266

Sandvik Coromant

N331.1A-08 45 08E-KM3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5737266

MFR# 5737266ISO/ANSI# N331.1A-08 45 08E-KM3040Cat# N331.1A-08 45 08E-KM3040Series N331.1A

$26.02List $33.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade3040
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5737266 is a N331.1A-08 45 08E-KM3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeN331.1A-08 45 08E-KM3040
Chip breakerKM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityL331.52C
Cutting edge styleCorner Rounded
Hole diameter0.1417
Included angle degree90
Inscribed circle0.3350
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code084508
Insert styleN331.1A
Iso codeN331.1A-08 45 08E-KM3040
Length0.3031
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-08 45 08E-KM3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1752
Thickness range0.1750 to 0.1850
Width0.3740
