Sandvik Coromant

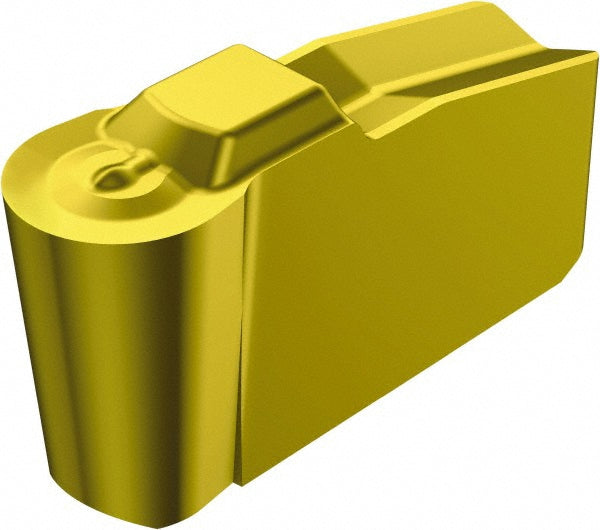

N151.2-A375-80-4P 235 Solid Carbide Insert, TiCN/TiN - Sandvik Coromant 5737287
MFR# 5737287ISO/ANSI# N151.2-A375-80-4P 235Cat# N151.2-A375-80-4P 235Series T-Max Q-Cut
$36.72List $47.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5737287 is a N151.2-A375-80-4P 235 solid carbide indexable insert, TiCN/TiN coated.
Specifications
Chip breaker4P
Coating finishTiCN/TiN
Coating processCVD
Corner radius in3/16
Cutting height0.4062
Cutting width in3/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat size80
Insert size80
Insert styleN151.2-A..
Insert thickness0.4062
Iso codeN151.2-A375-80-4P 235
Manufacturers catalog numberN151.2-A375-80-4P 235
Maximum depth of cut0.1650
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.1875
Multi use toolYes
Overall width0.3750
RakePositive
