Sandvik Coromant

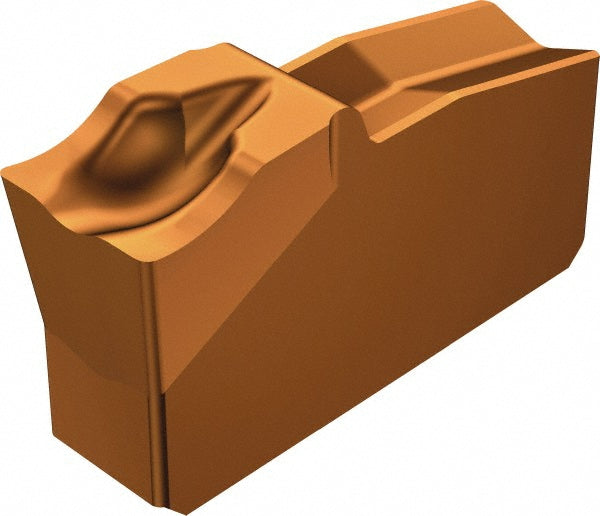

Solid Carbide Insert, Grade 1145, TiAlN - Sandvik Coromant 5737393
MFR# 5737393Cat# N151.2-400-5E 1145Series T-Max Q-Cut
$25.02List $32.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5737393 is a solid carbide indexable insert, grade 1145, TiAlN coated.
Specifications
Chipbreaker5E
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size40
Insert size code40
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-400-5E 1145
Manufacturer grade1145
Overall length0.2677
Overall width0.1575
Relief angle7.00
