Sandvik Coromant

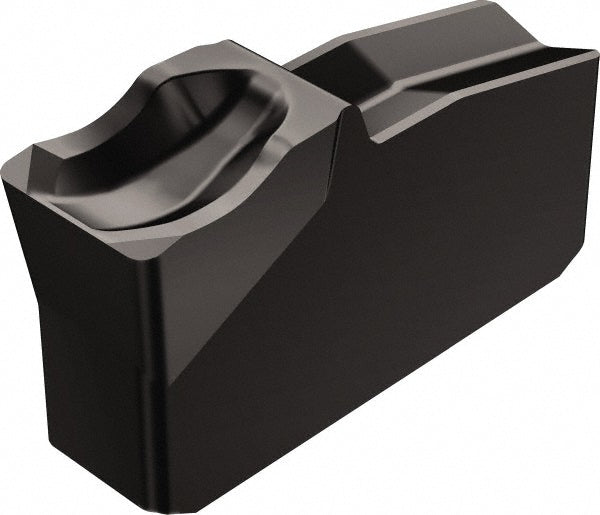

Solid Carbide Insert, Grade 3020, TiCN - Sandvik Coromant 5737442
MFR# 5737442Cat# N151.2-400-4E 3020Series T-Max Q-Cut
$27.85List $35.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3020
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5737442 is a solid carbide indexable insert, grade 3020, TiCN coated.
Specifications
Chipbreaker4E
Coating finishTiCN
Coating processMTCVD
Corner radius0.0118
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size40
Insert size code40
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-400-4E 3020
Manufacturer grade3020
Overall length0.2677
Overall width0.1575
Relief angle7.00
