Sandvik Coromant

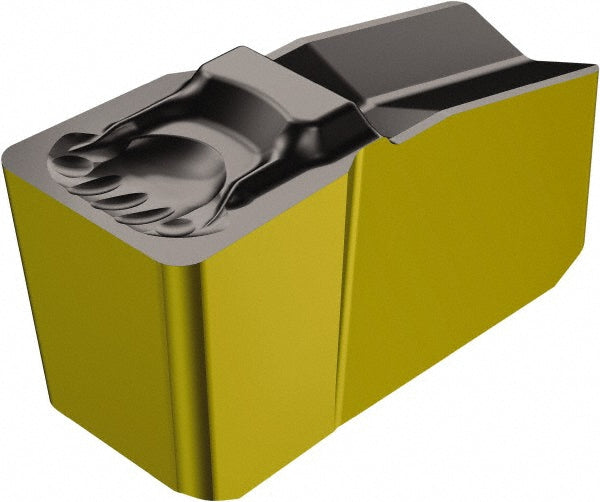

N151.2-A375-80-6G 4225 Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5737609
MFR# 5737609ISO/ANSI# N151.2-A375-80-6G 4225Cat# N151.2-A375-80-6G 4225Series T-Max Q-Cut
$40.39List $51.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737609 is a N151.2-A375-80-6G 4225 solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker6G
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0310
Cutting height0.4062
Cutting width in3/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat size80
Insert size80
Insert styleN151.2
Insert thickness0.4062
Iso codeN151.2-A375-80-6G 4225
Manufacturers catalog numberN151.2-A375-80-6G 4225
Manufacturer grade4225
Maximum corner radius0.0330
Minimum corner radius0.0290
Multi use toolYes
Overall length0.4622
Overall width in3/8
RakeNeutral
Rake angle7.00
