Sandvik Coromant
N151.2-5004-50-5T 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5737618
MFR# 5737618ISO/ANSI# N151.2-5004-50-5T 1125Cat# N151.2-5004-50-5TSeries T-Max Q-Cut
$22.80List $29.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description

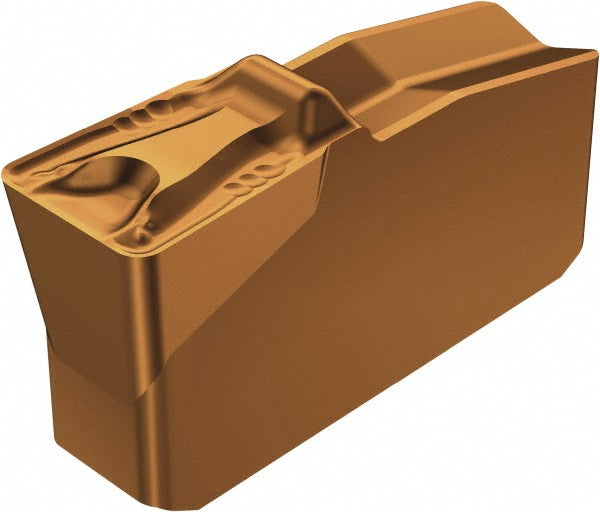

The Sandvik Coromant 5737618 is a N151.2-5004-50-5T 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breaker5T
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting width0.1969
Insert handNeutral
Insert materialCarbide
Insert size50
Insert styleN151.2
Insert thickness0.3191
Iso codeN151.2-5004-50-5T 1125
Lead angle0
Manufacturers catalog numberN151.2-5004-50-5T
Manufacturer grade1125
Maximum depth of cut0.0906
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall width0.1969
Rake angle7
