Sandvik Coromant

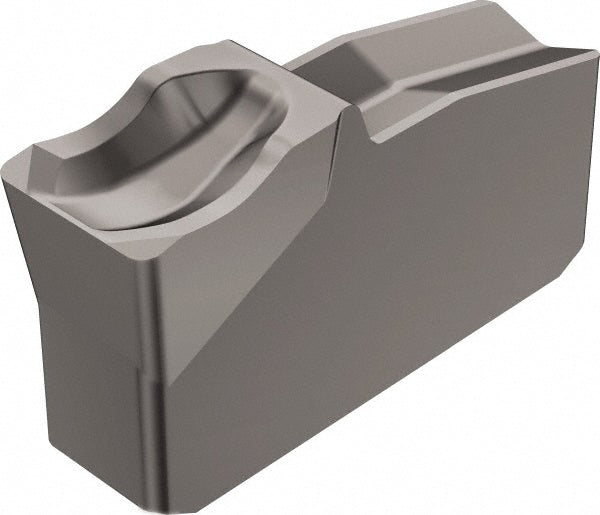

Solid Carbide Insert, Grade H13A - Sandvik Coromant 5737634
MFR# 5737634Cat# N151.2-600-4E H13ASeries T-Max Q-Cut
$26.61List $33.53
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5737634 is a solid carbide indexable insert, grade H13A.
Specifications
Chipbreaker4E
Coating processUncoated
Corner radius0.0157
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size60
Insert size code60
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-600-4E H13A
Manufacturer gradeH13A
Overall length0.3295
Overall width0.2362
Relief angle7.00
