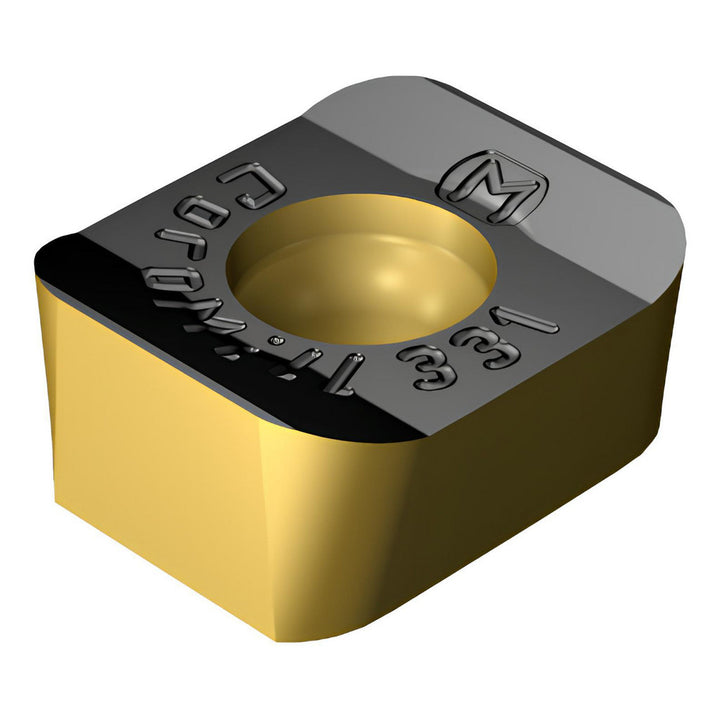

N331.1A-14 50 08E-KM3220 Solid Carbide Insert, Grade 3220, TiCN - Sandvik Coromant 5737701

Sandvik Coromant

N331.1A-14 50 08E-KM3220 Solid Carbide Insert, Grade 3220, TiCN - Sandvik Coromant 5737701

MFR# 5737701ISO/ANSI# N331.1A-14 50 08E-KM3220Cat# N331.1A-14 50 08E-KM3220Series N331.1A

$29.26List $37.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeRectangle
Grade3220
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5737701 is a N331.1A-14 50 08E-KM3220 solid carbide indexable insert, grade 3220, TiCN coated. Suited for cast iron.

Specifications

Ansi codeN331.1A-14 50 08E-KM3220
Chip breakerKM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size14
Insert size code145008
Insert styleN331.1A
Iso codeN331.1A-14 50 08E-KM3220
Length0.5394
Length range0.5000 to 0.6000
Manufacturers catalog numberN331.1A-14 50 08E-KM3220
Manufacturer grade3220
Material applicationCast Iron
Material gradeK15
Maximum depth of cut0.5394
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in29/64
