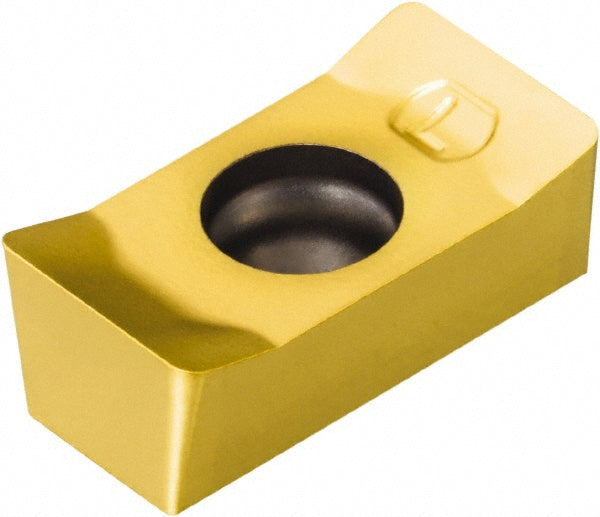

N331.1A-14 50 08H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5737856

Sandvik Coromant

N331.1A-14 50 08H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5737856

MFR# 5737856ISO/ANSI# N331.1A-14 50 08H-WL1025Cat# N331.1A-14 50 08H-WL1025Series N331.1A

$32.14List $40.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1025
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5737856 is a N331.1A-14 50 08H-WL1025 solid carbide indexable insert, grade 1025, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeN331.1A-14 50 08H-WL1025
Chip breakerWL
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle0.5710
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size14
Insert size code145008
Insert styleN331.1A
Iso codeN331.1A-14 50 08H-WL1025
Length0.5394
Length range0.5000 to 0.6000
Manufacturers catalog numberN331.1A-14 50 08H-WL1025
Manufacturer grade1025
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.5394
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in29/64
