Sandvik Coromant

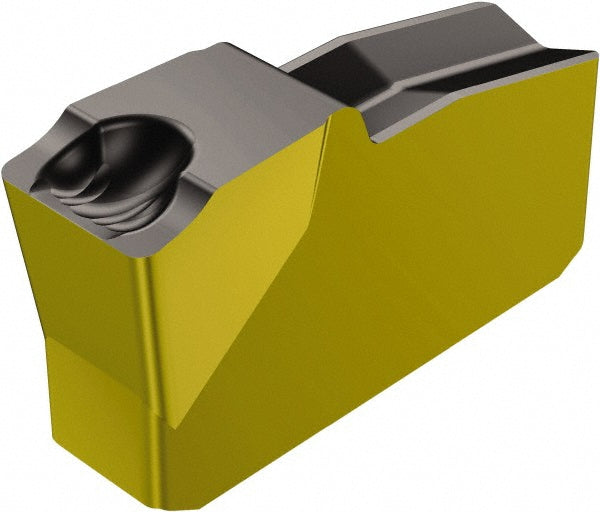

N151.2-800-80-5G 4225 Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5737861
MFR# 5737861ISO/ANSI# N151.2-800-80-5G 4225Cat# N151.2-800-80-5G 4225Series T-Max Q-Cut
$46.10List $58.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737861 is a N151.2-800-80-5G 4225 solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker5G
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0197
Cutting height0.4062
Cutting width0.3150
Insert handNeutral
Insert materialSolid Carbide
Insert seat size80
Insert size80
Insert styleN151.2
Insert thickness0.4062
Iso codeN151.2-800-80-5G 4225
Manufacturers catalog numberN151.2-800-80-5G 4225
Manufacturer grade4225
Maximum corner radius0.0236
Minimum corner radius0.0157
Multi use toolYes
Overall length0.4449
Overall width0.3150
RakeNeutral
Rake angle7.00
