Sandvik Coromant
N151.3-A088-20-4G 235 Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 5737870
MFR# 5737870ISO/ANSI# N151.3-A088-20-4G 235Cat# N151.3-A088-20-4G 235Series T-Max Q-Cut
$21.64List $27.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description

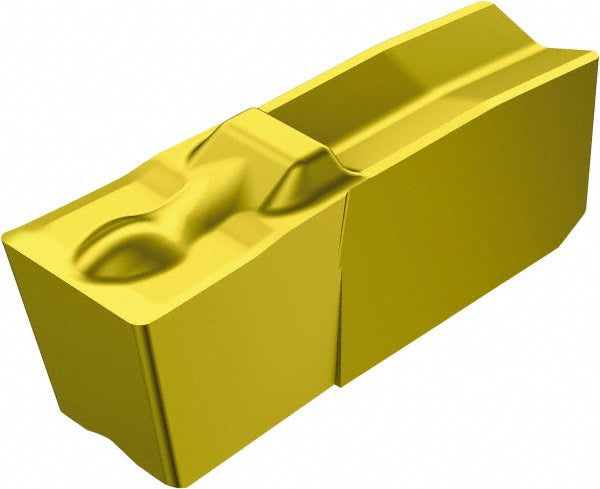

The Sandvik Coromant 5737870 is a N151.3-A088-20-4G 235 solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Chip breaker4G
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0070
Cutting height0.1883
Cutting width0.0880
Insert handNeutral
Insert materialSolid Carbide
Insert seat size20
Insert size20
Insert styleN151.3
Insert thickness0.1883
Iso codeN151.3-A088-20-4G 235
Manufacturers catalog numberN151.3-A088-20-4G 235
Manufacturer grade235
Maximum corner radius0.0090
Minimum corner radius0.0050
Multi use toolYes
Overall length0.1744
Overall width0.0880
RakeNeutral
Rake angle11.00
