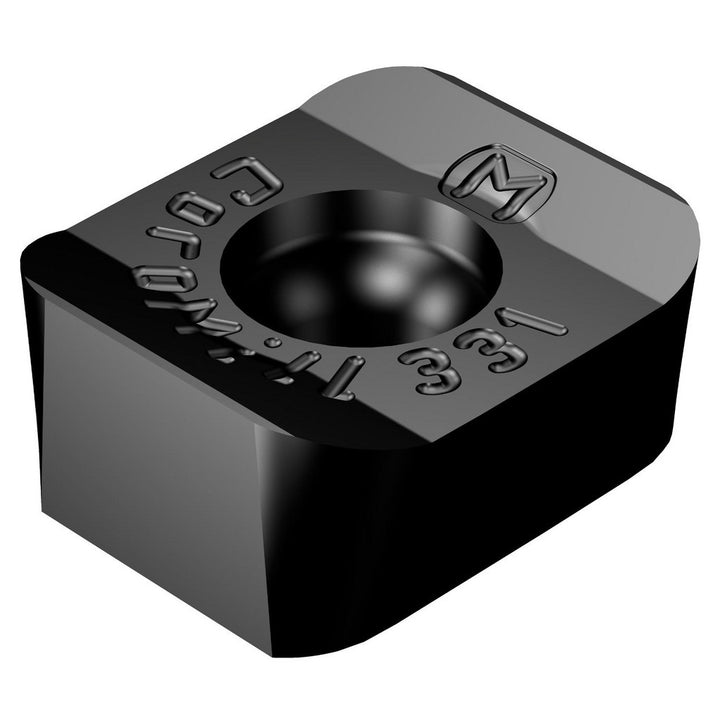

N331.1A-11 50 08E-KM3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5737963
MFR# 5737963ISO/ANSI# N331.1A-11 50 08E-KM3040Cat# N331.1A-11 50 08E-KM3040Series N331.1A
$35.57List $44.82
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC29/64
ShapeRectangle
Grade3040
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5737963 is a N331.1A-11 50 08E-KM3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.
Specifications
Ansi codeN331.1A-11 50 08E-KM3040
Chip breakerKM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityL331.52
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size11
Insert size code115008
Insert styleN331.1A
Iso codeN331.1A-11 50 08E-KM3040
Length0.4213
Length range0.4000 to 0.4500
Manufacturers catalog numberN331.1A-11 50 08E-KM3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in29/64
