Sandvik Coromant

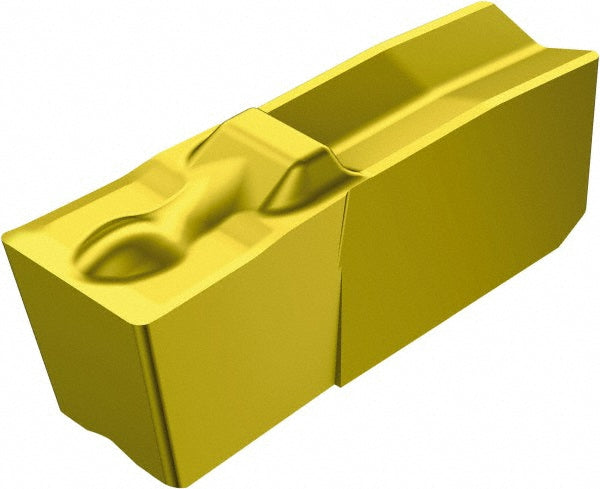

N151.3-A094-25-4G 235 Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 5737992
MFR# 5737992ISO/ANSI# N151.3-A094-25-4G 235Cat# N151.3-A094-25-4G 235Series T-Max Q-Cut
$22.18List $28.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5737992 is a N151.3-A094-25-4G 235 solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Chip breaker4G
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0070
Cutting height0.2081
Cutting width in3/32
Insert handNeutral
Insert materialSolid Carbide
Insert seat size25
Insert size25
Insert styleN151.3
Insert thickness0.2082
Iso codeN151.3-A094-25-4G 235
Manufacturers catalog numberN151.3-A094-25-4G 235
Manufacturer grade235
Maximum corner radius0.0090
Minimum corner radius0.0050
Multi use toolYes
Overall length0.2118
Overall width0.0940
RakeNeutral
Rake angle11.00
