Sandvik Coromant

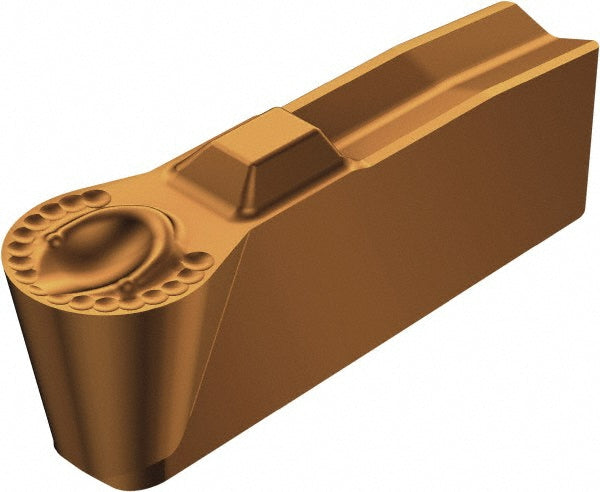

N151.3-300-25-7P 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5738014
MFR# 5738014ISO/ANSI# N151.3-300-25-7P 1125Cat# N151.3-300-25-7P 1125Series T-Max Q-Cut
$19.22List $24.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5738014 is a N151.3-300-25-7P 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breaker7P
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutting height0.2081
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat size25
Insert size25
Insert styleN151.3
Insert thickness0.2081
Iso codeN151.3-300-25-7P 1125
Manufacturers catalog numberN151.3-300-25-7P 1125
Maximum depth of cut0.0512
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0591
Multi use toolYes
Overall length0.4250
Overall width0.1180
RakePositive
