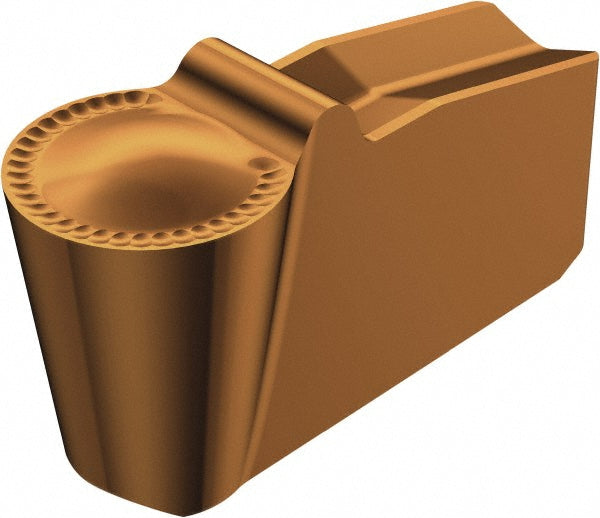

N151.2-400-40-5P 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5738042

Sandvik Coromant

N151.2-400-40-5P 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5738042

MFR# 5738042ISO/ANSI# N151.2-400-40-5P 1125Cat# N151.2-400-40-5P 1125Series T-Max Q-Cut

$31.41List $39.58 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5738042 is a N151.2-400-40-5P 1125 solid carbide indexable insert, TiAlN coated.

Specifications

Chip breaker5P
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutting height0.3191
Cutting width0.1575
Insert handNeutral
Insert materialSolid Carbide
Insert seat size40
Insert size40
Insert styleN151.2
Insert thickness0.3191
Iso codeN151.2-400-40-5P 1125
Manufacturers catalog numberN151.2-400-40-5P 1125
Maximum depth of cut0.0669
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0787
Multi use toolYes
Overall width0.1580
RakePositive
