Sandvik Coromant
Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5738111
MFR# 5738111Cat# N151.2-500-5E 4225Series T-Max Q-Cut
$24.41List $31.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

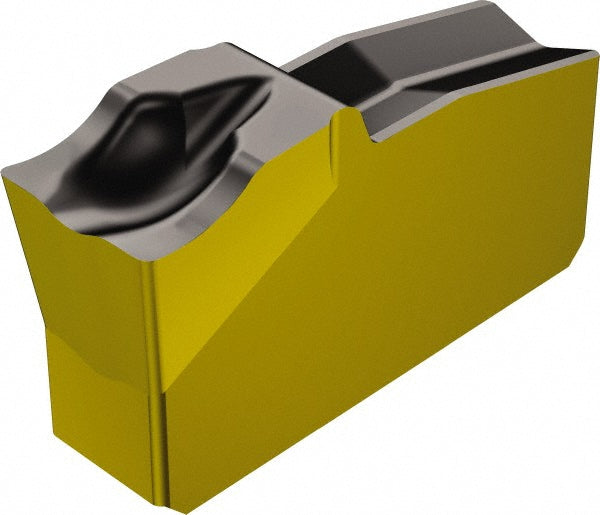

The Sandvik Coromant 5738111 is a solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5E
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0079
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size50
Insert size code50
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-500-5E 4225
Manufacturer grade4225
Overall length0.2677
Overall width0.1969
Relief angle7.00
