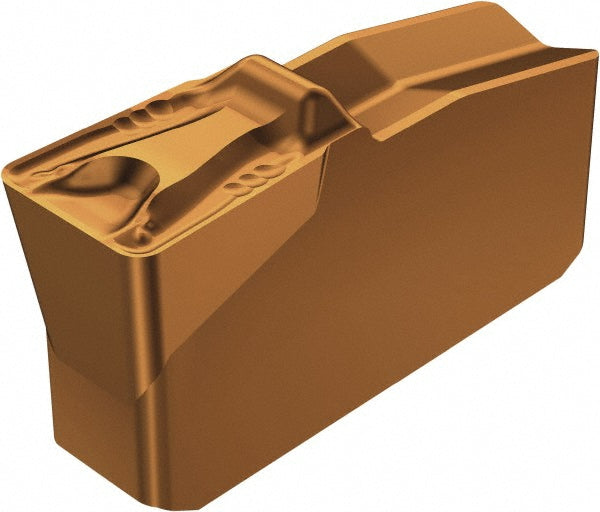

N151.2-6008-60-5T 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5738259
MFR# 5738259ISO/ANSI# N151.2-6008-60-5T 1125Cat# N151.2-6008-60-5T 1125Series T-Max Q-Cut
$34.67List $43.69
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5738259 is a N151.2-6008-60-5T 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breaker5T
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting height0.4062
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat size60
Insert size60
Insert styleN151.2
Insert thickness0.4062
Iso codeN151.2-6008-60-5T 1125
Manufacturers catalog numberN151.2-6008-60-5T 1125
Manufacturer grade1125
Maximum depth of cut0.1063
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall width0.4062
RakePositive
