Sandvik Coromant

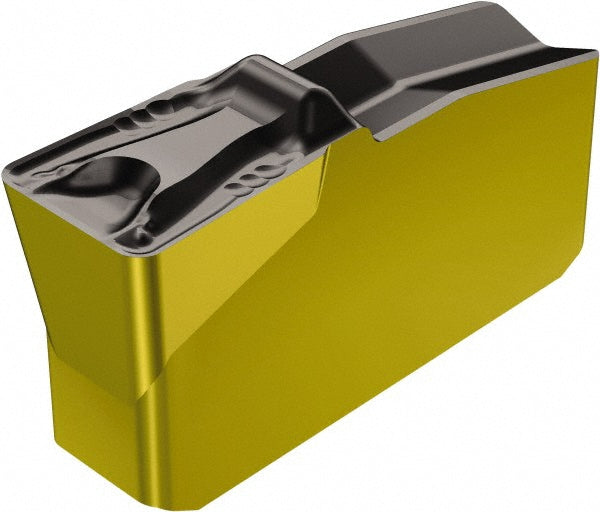

N151.2-6008-60-5T 4225 Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5738263
MFR# 5738263ISO/ANSI# N151.2-6008-60-5T 4225Cat# N151.2-6008-60-5T 4225Series T-Max Q-Cut
$28.80List $36.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5738263 is a N151.2-6008-60-5T 4225 solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker5T
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0315
Cutting height0.4062
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat size60
Insert size60
Insert styleN151.2
Insert thickness0.4062
Iso codeN151.2-6008-60-5T 4225
Manufacturers catalog numberN151.2-6008-60-5T 4225
Manufacturer grade4225
Maximum depth of cut0.1063
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall width0.4062
RakePositive
