Sandvik Coromant

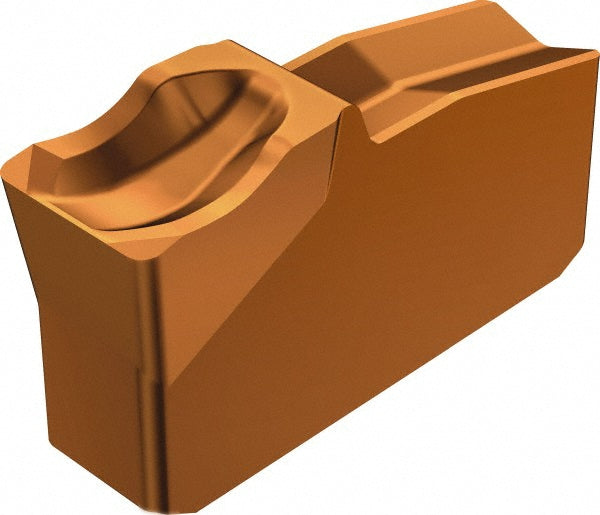

Solid Carbide Insert, Grade 1145, TiAlN - Sandvik Coromant 5738359
MFR# 5738359Cat# N151.2-500-4E 1145Series T-Max Q-Cut
$32.26List $40.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5738359 is a solid carbide indexable insert, grade 1145, TiAlN coated.
Specifications
Chipbreaker4E
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size50
Insert size code50
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-500-4E 1145
Manufacturer grade1145
Overall width0.1969
Relief angle7.00
