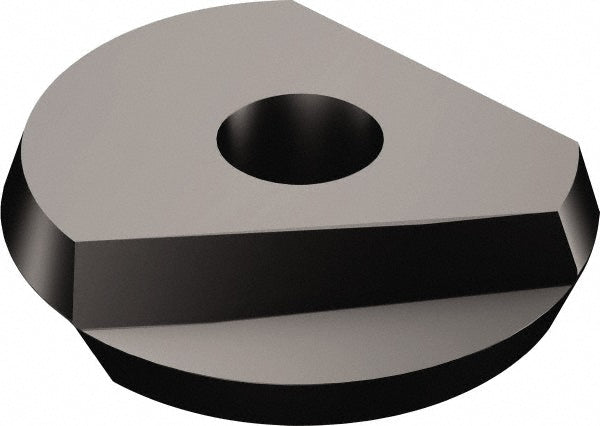

RA216F-19 50 E-L 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5738655

Sandvik Coromant

RA216F-19 50 E-L 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5738655

MFR# 5738655ISO/ANSI# RA216F-19 50 E-L 1010Cat# RA216F-19 50 E-L 1010Series RA216F

$138.94List $178.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeBall Nose
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5738655 is a RA216F-19 50 E-L 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeRA216F-19 50 E-L 1010
Chip breakerL
Coating finishTiAlN
Coating processPVD
Convex radius0.3740
Corner radius in3/8
Cutter series compatibilityRA216F
Cutting edge styleRounded
Hole diameter0.1969
Included angle degree180
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size19
Insert size code1950
Insert styleRA216F
Iso codeRA216F-19 50 E-L 1010
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRA216F-19 50 E-L 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width in3/4
