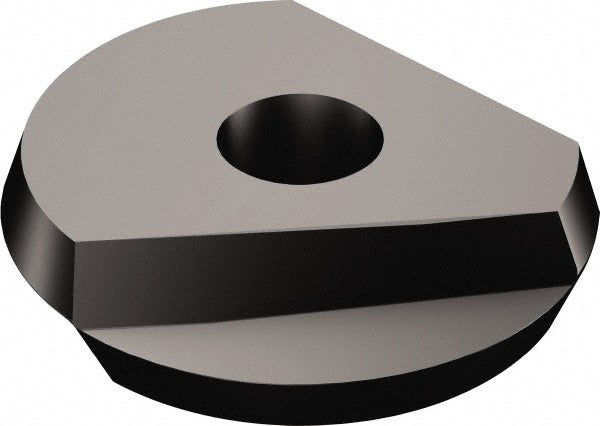

RA216F-13 30 E-L 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5738680

Sandvik Coromant

RA216F-13 30 E-L 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5738680

MFR# 5738680ISO/ANSI# RA216F-13 30 E-L 1010Cat# RA216F-13 30 E-L 1010Series RA216F

$106.94List $137.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeBall Nose
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5738680 is a RA216F-13 30 E-L 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeRA216F-13 30 E-L 1010
Chip breakerL
Coating finishTiAlN
Coating processPVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityRA216F
Cutting edge styleRounded
Hole diameter0.1378
Included angle degree180
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size13
Insert size code1330
Insert styleRA216F
Iso codeRA216F-13 30 E-L 1010
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRA216F-13 30 E-L 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1181
Thickness range0.1000 to 0.1250
Width in1/2
