Sandvik Coromant

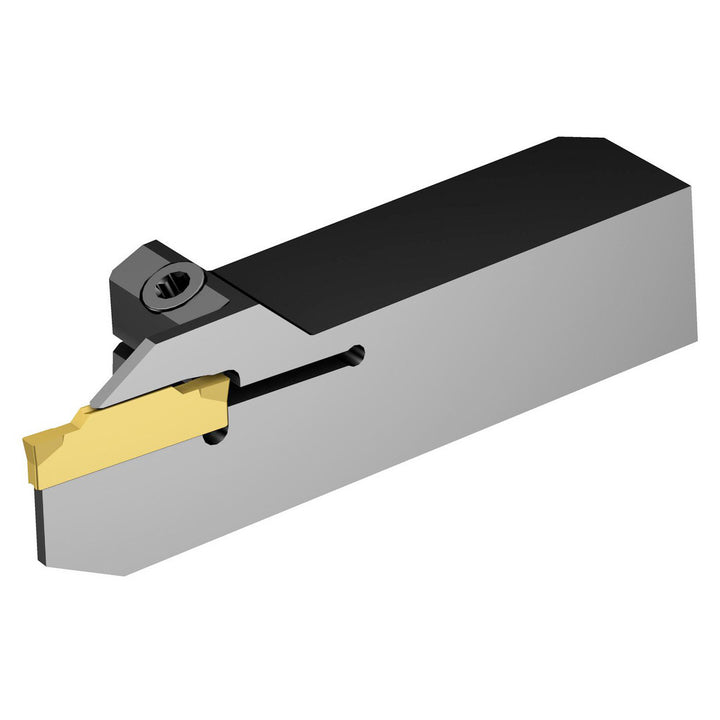

Indexable Grooving - Sandvik Coromant 5738700
MFR# 5738700Cat# QS-LF123E067-10BSeries CoroCut 1-2
$274.48List $291.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5738700 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge2.7559
Compatible insert size codeN123E2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderLeft Hand
Head height0.6250
Head length0.6250
Insert compatibilityN123E2-0200-0002-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberQS-LF123E067-10B
Maximum depth of cut0.6693
Maximum groove width (mm)2.39
Maximum overhang in1.0240
Minimum groove width0.0728
Overall length2.7559
Shank height in5/8
Shank length1.7319
Shank width diameter in5/8
Toolholder styleQS-LF123..B
