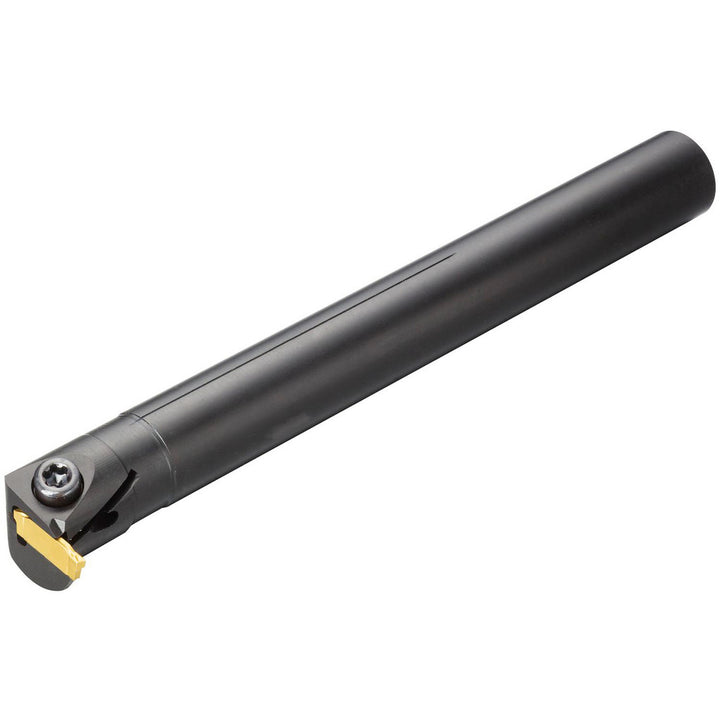

Indexable Grooving - Sandvik Coromant 5738718

MFR# 5738718Cat# RAG123E020-12BSeries Coro Cut 1-2

$397.60List $422.40 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Sandvik Coromant 5738718 indexable grooving. Series Coro Cut 1-2.

Specifications

Center to cutting edge0.5915
Compatible insert size codeN123E2
Complete insert compatibilityL123E2-0200-0502-CM 1125; L123E2-0200-0502-CM 1145; L123E2-0200-0502-CM 2145; L123E2-0200-0502-CM 4125; L123E2-0200-1501-CS 1125; N123E1-0200-0002-CM 1125; N123E1-0200-0002-CM 1145; N123E2-0185-0001-GF 1105; N123E2-0185-0001-GF 1125; N123E2-0198-0002-GF 1
Coolant hole diameter0.2360
Coolant throughYes
Hand of holderRight Hand
Head length1.1811
Insert compatibilityN123..CM; N123..GM
Insert holding methodClamp
Insert seat sizeE
Manufacturers catalog numberRAG123E020-12B
Maximum bore depth1.1810
Maximum depth of cut0.1969
Maximum groove width0.0787
Minimum bore diameter (mm)32.00
Minimum hole diameter1.2598
Multi use toolYes
Overall length7.0866
Shank length5.9055
Toolholder materialSteel
Toolholder styleAG123
Toolholder typeInternal Grooving
