Sandvik Coromant

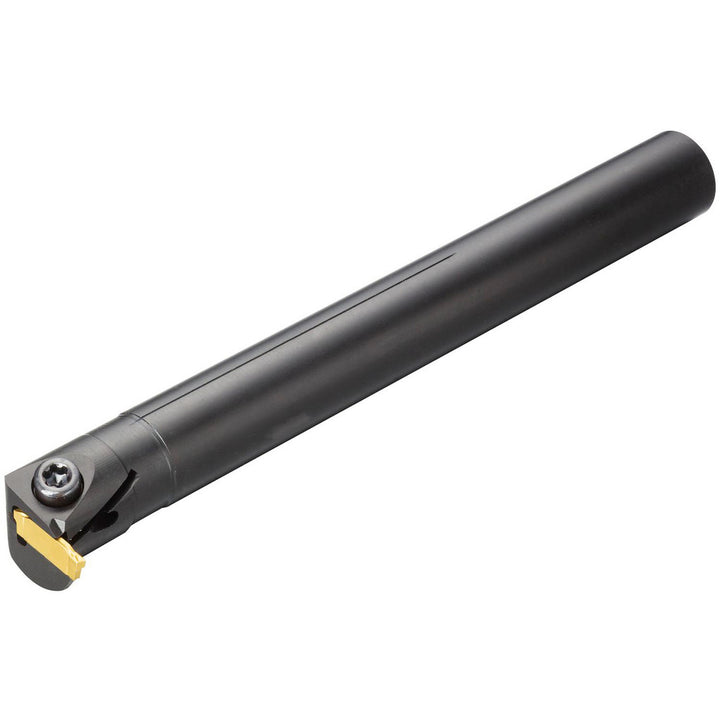

Indexable Grooving - Sandvik Coromant 5738722
MFR# 5738722Cat# RAG123E028-16BSeries Coro Cut 1-2
$432.06List $459.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5738722 indexable grooving. Series Coro Cut 1-2.
Specifications
Back of bar to cutting edge7.8740
Compatible insert size codeN123E2
Complete insert compatibilityN123E2-GM
Coolant throughYes
Cutting directionRight Hand
Full radius insertYes
Hand of holderRight Hand
Head length1.3780
Insert compatibilityN123E2-GM
Insert holding methodClamp
Insert seat sizeE
Internal or externalInternal
Manufacturers catalog numberRAG123E028-16B
Maximum bore depth4.0000
Maximum depth of cut0.2800
Maximum groove width0.0941
Maximum workpiece diameter1.0000
Minimum bore diameter1.2598
Minimum groove width0.0728
Minimum hole diameter1.0000
Mount typeStraight
Multi use toolYes
Overall length7.8740
Shank diameter1.0000
Shank height1.0000
Shank length7.8740
Shank width1.0000
Toolholder materialSteel
Toolholder styleInternal
Toolholder typeNon-Face Grooving
