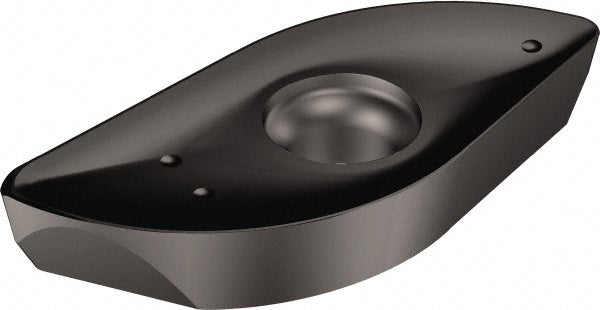

RA216-13 02 M-M 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5739039

Sandvik Coromant

RA216-13 02 M-M 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5739039

MFR# 5739039ISO/ANSI# RA216-13 02 M-M 1010Cat# RA216-13 02 M-M 1010Series RA216

$43.37List $55.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5739039 is a RA216-13 02 M-M 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeRA216-13 02 M-M 1010
Chip breakerM
Coating finishTiAlN
Coating processPVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityRA216
Cutting edge styleRounded
Hole diameter0.1142
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size13
Insert size code1302
Insert styleRA216
Iso codeRA216-13 02 M-M 1010
Length0.4440
Length range0.4000 to 0.4500
Manufacturers catalog numberRA216-13 02 M-M 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.4449
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
