Sandvik Coromant

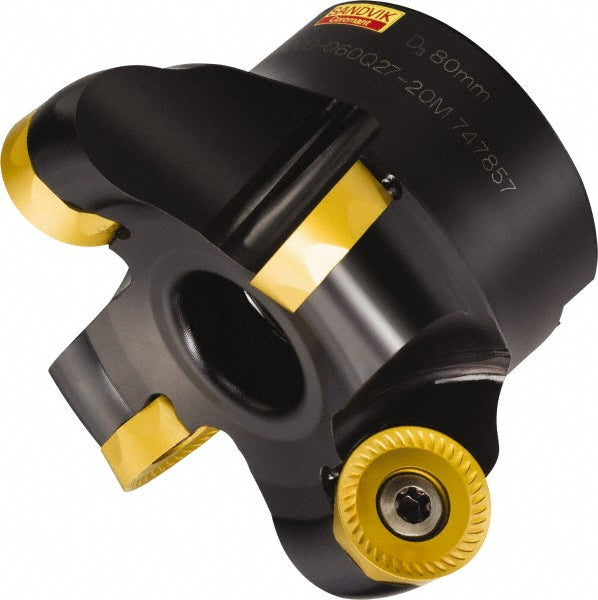

Indexable Milling Cutters - Sandvik Coromant 5739068
MFR# 5739068Series CoroMill 200
$760.56List $808.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Sandvik Coromant 5739068 indexable milling cutters. Series CoroMill 200.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeRCKT 13 04 00
Complete insert compatibilityRCKT 13 04 00
Coolant throughNo
Cutter styleRA200
Cutting directionRight Hand
Cutting edge length in1/4
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3209
Lead angle0
Maximum body diameter1.5000
Maximum cutting diameter in1-1/2
Maximum depth of cut0.2500
Number of cutter inserts4
Number of flutes4
Overall height1.9685
Pitch typeClose
RakeNegative
Toolholder materialSteel
