Sandvik Coromant

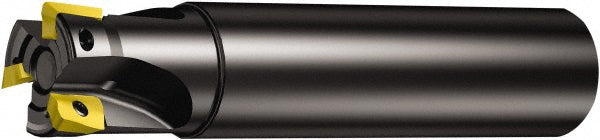

Indexable End Mills - Sandvik Coromant 5739309
MFR# 5739309Series CoroMill 390
$448.76
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sandvik Coromant 5739309 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter5/8
End mill typeRamping
Head length in1-3/8
Insert compatibilityR390-11..
Insert holding methodScrew
Iso numberRA390-016O16L-11L
Lead angle90
Maximum depth of cut0.3940
Maximum rpm31000
Number of cutter inserts2
Number of flutes2
Overall length5.7000
Shank diameter in5/8
Shank length4.3250
Shank typeCylindrical
Tool materialSteel
