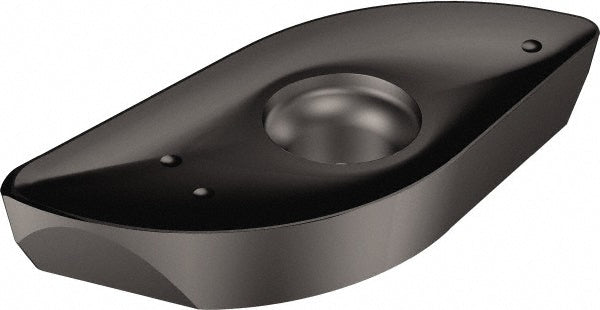

RA216-25 04 M-M 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5739336

Sandvik Coromant

RA216-25 04 M-M 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5739336

MFR# 5739336ISO/ANSI# RA216-25 04 M-M 1010Cat# RA216-25 04 M-M 1010Series RA216

$75.59List $95.26 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5739336 is a RA216-25 04 M-M 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeRA216-25 04 M-M 1010
Chip breakerM
Coating finishTiAlN
Coating processPVD
Convex radius0.5000
Corner radius in1/2
Cutter series compatibilityRA216
Cutting edge styleRounded
Hole diameter0.1850
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size25
Insert size code2504
Insert styleRA216
Iso codeRA216-25 04 M-M 1010
Length0.8930
Length range0.7000 to 0.9000
Manufacturers catalog numberRA216-25 04 M-M 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.8937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
