Sandvik Coromant

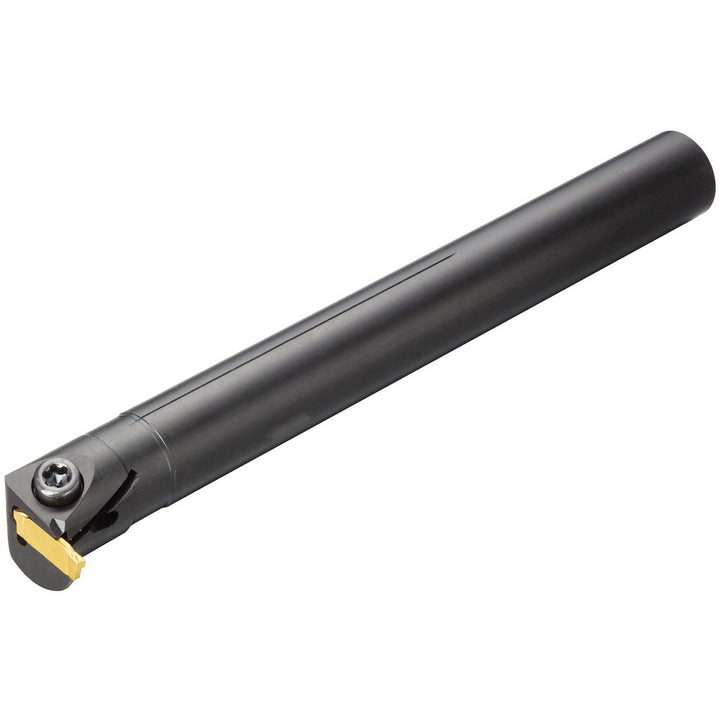

Indexable Boring - Sandvik Coromant 5739644
MFR# 5739644Cat# RAG123G030-16BSeries CoroCut 1-2
$480.04List $501.12
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5739644 indexable boring. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge7.8740
Center to cutting edge0.7776
Compatible insert size codeG
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationBoring; Grooving
Hand of holderRight Hand
Insert compatibilityN123G2-0300-GM
Insert holding methodClamp
Insert includedNo
Insert thickness0.1693
Lead angle90
Manufacturers catalog numberRAG123G030-16B
Maximum bore depth in4
Minimum bore diameter1.2598
Minimum bore diameter using diamond insert cartridge1.2598
Minimum bore diameter using triangle insert cartridge1.2598
Multi use applicationBoring; Grooving
Multi use toolYes
Neck diameter in1
Number of inserts used on toolholder1
Overall length7.8740
RakeNeutral
Rake angle0.00
Shank diameter in1
Toolholder styleAG123..B
Tool materialSteel
