Sandvik Coromant

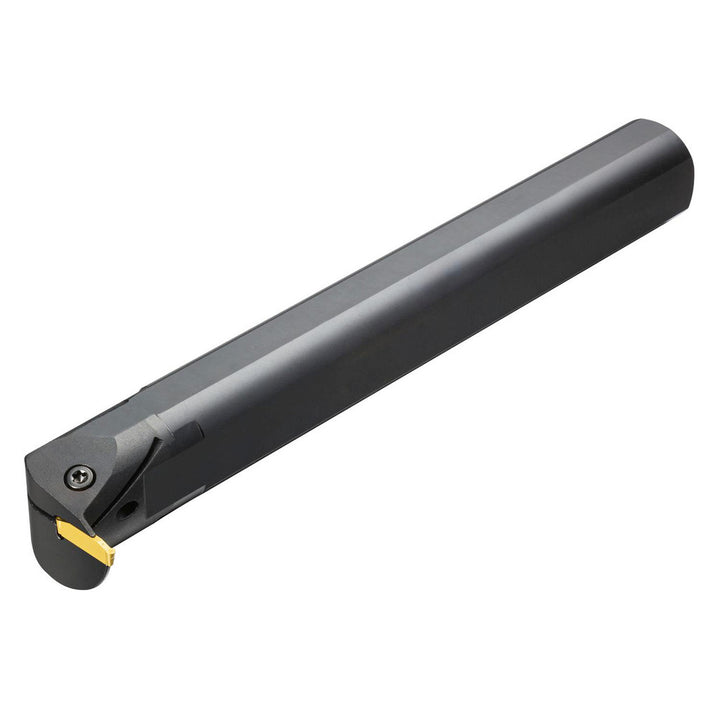

Indexable Grooving - Sandvik Coromant 5739646
MFR# 5739646Cat# RAG123G037-20BSeries Coro Cut 1-2
$603.16List $629.64
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5739646 indexable grooving. Series Coro Cut 1-2.
Specifications
Back of bar to cutting edge9.8425
Compatible insert size codeN123G2
Complete insert compatibilityN123G2-GM
Coolant throughYes
Cutting directionRight Hand
Full radius insertYes
Hand of holderRight Hand
Head length1.7716
Insert compatibilityN123G2-GM
Insert holding methodClamp
Insert seat sizeG
Internal or externalInternal
Manufacturers catalog numberRAG123G037-20B
Maximum bore depth5.0000
Maximum depth of cut0.3543
Maximum groove width0.1575
Maximum workpiece diameter1.2500
Minimum bore diameter1.5748
Minimum groove width0.1181
Minimum hole diameter1.2500
Mount typeStraight
Multi use toolYes
Overall length9.8425
Shank diameter1.2500
Shank height1.1800
Shank length9.8425
Shank width1.2500
Toolholder materialSteel
Toolholder styleInternal
Toolholder typeNon-Face Grooving
