Sandvik Coromant

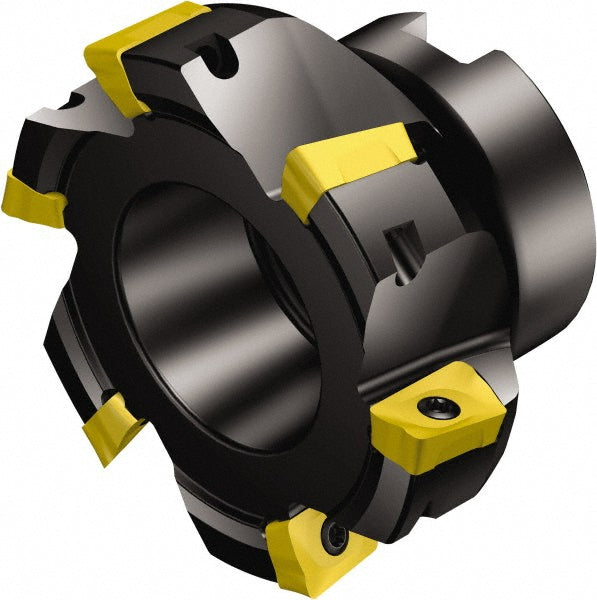

Indexable Milling Cutters - Sandvik Coromant 5739676
MFR# 5739676Series CoroMill 390
$888.58List $944.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Sandvik Coromant 5739676 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR390-17..
Complete insert compatibilityR390-17..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.6181
Hub diameter in3/4
Insert holding methodScrew
Keyway width0.3839
Lead angle90
Maximum body diameter2.4370
Maximum cutting diameter in2-1/2
Maximum depth of cut0.6181
Number of cutter inserts6
Number of flutes6
Overall height1.5750
Pitch typeCoarse
RakePositive
Toolholder materialSteel
