Sandvik Coromant

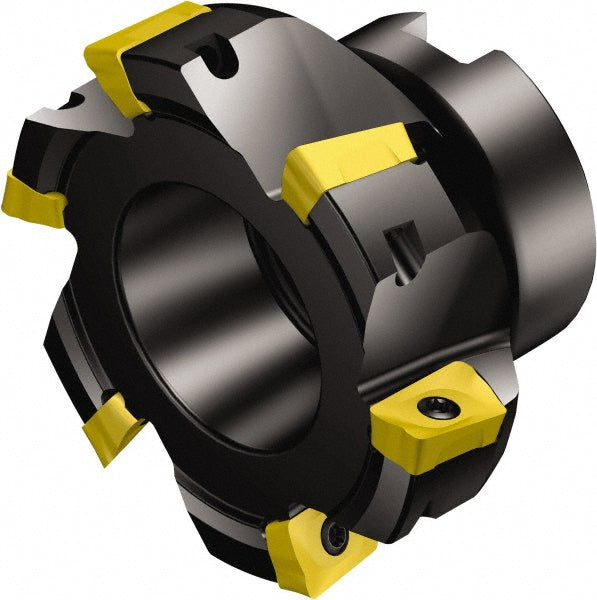

Indexable Milling Cutters - Sandvik Coromant 5739688
MFR# 5739688Series CoroMill 390
$718.21List $763.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Sandvik Coromant 5739688 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR390-18..
Complete insert compatibilityR390-18..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.6063
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3209
Lead angle90
Maximum body diameter1.9055
Maximum cutting diameter in2
Maximum depth of cut0.6063
Number of cutter inserts4
Number of flutes4
Overall height1.5748
Pitch typeClose
RakePositive
Toolholder materialSteel
