Sandvik Coromant

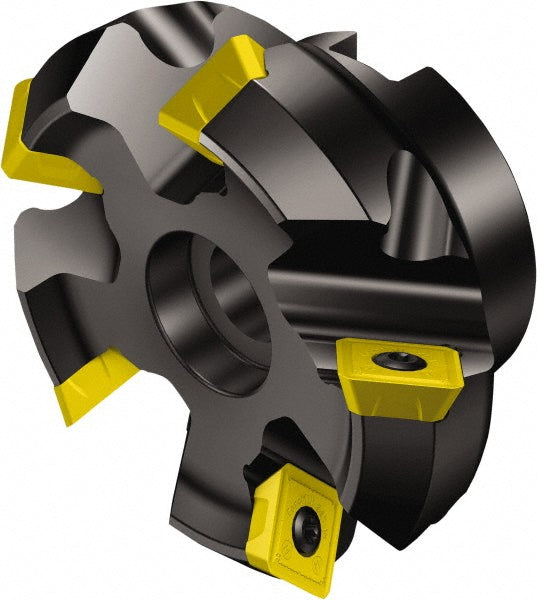

Indexable Milling Cutters - Sandvik Coromant 5739739
MFR# 5739739Series CoroMill 245
$988.35List $1,050.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Sandvik Coromant 5739739 indexable milling cutters. Series CoroMill 245.
Specifications
Arbor hole diameter in1
Compatible insert size codeR245-12T3..
Complete insert compatibilityR245-12T3..
Coolant throughNo
Cutter styleRA245
Cutting directionRight Hand
Cutting edge length0.2400
Hub diameter in1
Insert holding methodScrew
Keyway width0.3839
Lead angle45
Maximum body diameter3.0000
Maximum cutting diameter in3
Maximum depth of cut0.2400
Number of cutter inserts6
Number of flutes6
Overall height1.9685
Pitch typeClose
RakePositive
Toolholder materialSteel
