Sandvik Coromant

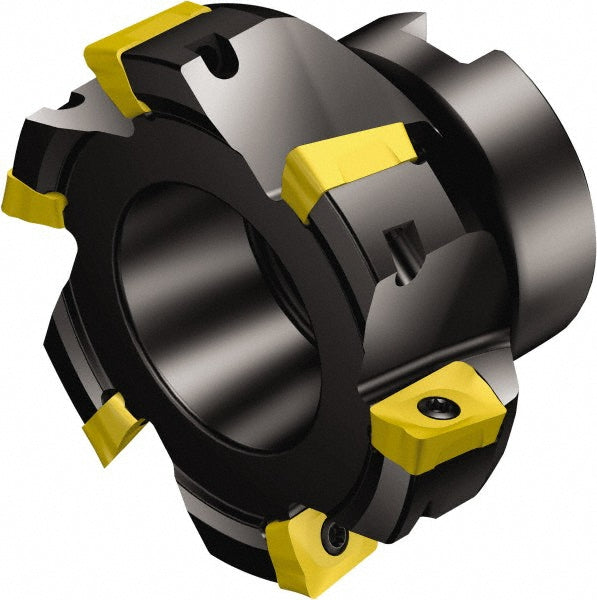

Indexable Milling Cutters - Sandvik Coromant 5739774
MFR# 5739774Series CoroMill 390
$1,037.31List $1,102.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Sandvik Coromant 5739774 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in1
Compatible insert size codeR390-11..
Complete insert compatibilityR390-11..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.3937
Hub diameter in1
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle90
Maximum body diameter2.9370
Maximum cutting diameter in3
Maximum depth of cut0.3937
Number of cutter inserts7
Number of flutes7
Overall height1.9690
Pitch typeClose
RakePositive
Toolholder materialSteel
