Sandvik Coromant

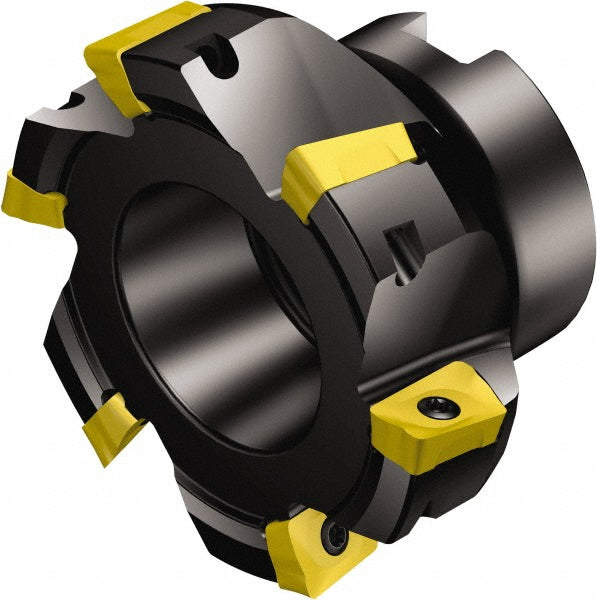

Indexable Milling Cutters - Sandvik Coromant 5739785
MFR# 5739785Series CoroMill 390
$1,011.89List $1,075.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Sandvik Coromant 5739785 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in1
Compatible insert size codeR390-17..
Complete insert compatibilityR390-17..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.6181
Hub diameter in1
Insert holding methodScrew
Keyway width0.3839
Lead angle90
Maximum body diameter2.9370
Maximum cutting diameter in3
Maximum depth of cut0.6181
Number of cutter inserts6
Number of flutes6
Overall height1.9690
Pitch typeClose
RakePositive
Toolholder materialSteel
