Sandvik Coromant

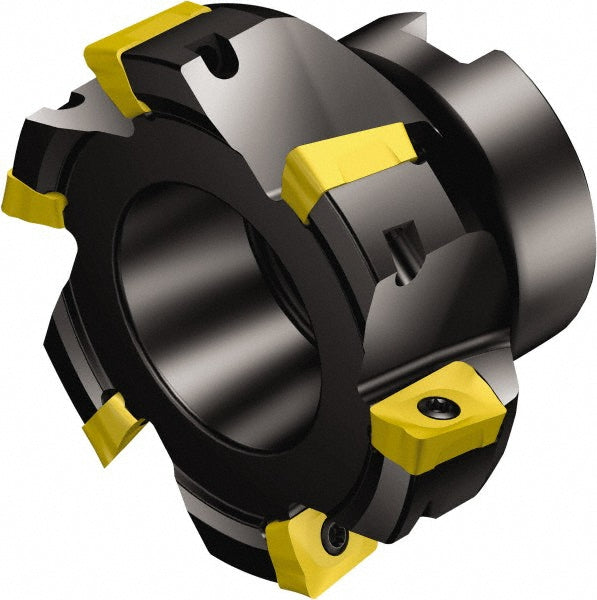

Indexable Milling Cutters - Sandvik Coromant 5739790
MFR# 5739790Series CoroMill 390
$1,011.89List $1,075.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Sandvik Coromant 5739790 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in1
Compatible insert size codeR390-18..
Complete insert compatibilityR390-18..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.6063
Hub diameter in1
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle90
Maximum body diameter2.9055
Maximum cutting diameter in3
Maximum depth of cut0.6063
Number of cutter inserts6
Number of flutes6
Overall height1.9685
Pitch typeClose
RakePositive
Toolholder materialSteel
