Sandvik Coromant

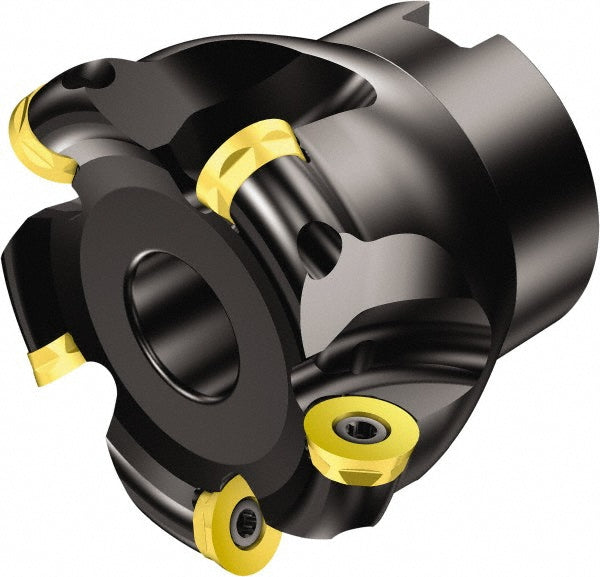

Indexable Milling Cutters - Sandvik Coromant 5739792
MFR# 5739792Series CoroMill 300
$755.86List $803.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Sandvik Coromant 5739792 indexable milling cutters. Series CoroMill 300.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR300-1340..
Complete insert compatibilityR300-1340..
Coolant throughYes
Cutter styleRA300
Cutting directionRight Hand
Cutting edge length0.2480
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3209
Lead angle0
Maximum body diameter1.5000
Maximum cutting diameter in1-1/2
Maximum depth of cut0.2480
Number of cutter inserts5
Number of flutes5
Overall height1.9685
Pitch typeCoarse
RakePositive
Toolholder materialSteel
