Sandvik Coromant

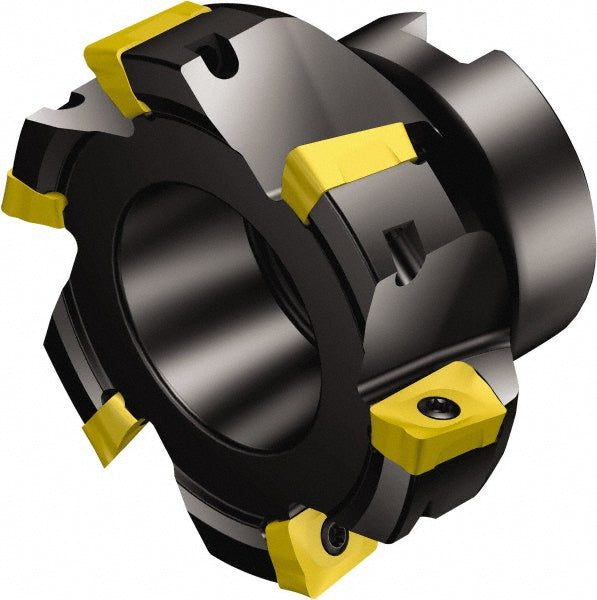

Indexable Milling Cutters - Sandvik Coromant 5739803
MFR# 5739803Series CoroMill 390
$921.55List $962.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Sandvik Coromant 5739803 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR390-17..
Complete insert compatibilityR390-17..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.6181
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle90
Maximum body diameter2.4370
Maximum cutting diameter in2-1/2
Maximum depth of cut0.6181
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Pitch typeClose
RakePositive
Toolholder materialSteel
