Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 5739886
MFR# 5739886Series CoroMill 210
$1,369.87List $1,430.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description

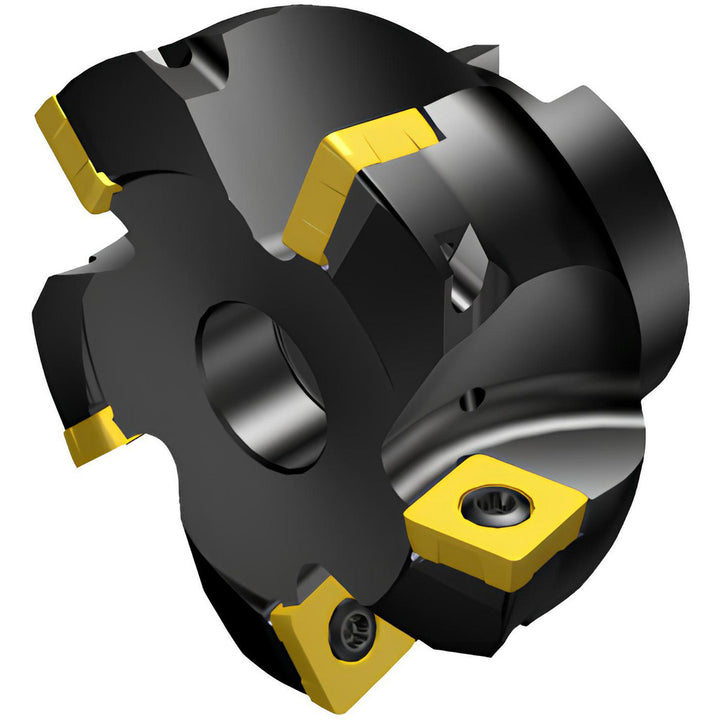

The Sandvik Coromant 5739886 indexable milling cutters. Series CoroMill 210.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeR210-140512M
Complete insert compatibilityR210-140512M-
Coolant throughYes
Cutter styleRA210
Cutting directionRight Hand
Cutting edge length0.0787
Hub diameter in1-1/2
Insert holding methodClamp; Screw
Keyway width0.6331
Lead angle10
Maximum body diameter3.0551
Maximum cutting diameter3.0551
Maximum depth of cut0.0787
Number of cutter inserts7
Number of flutes7
Overall height2.3620
Pitch typeCoarse
RakePositive
Toolholder materialSteel
