Sandvik Coromant

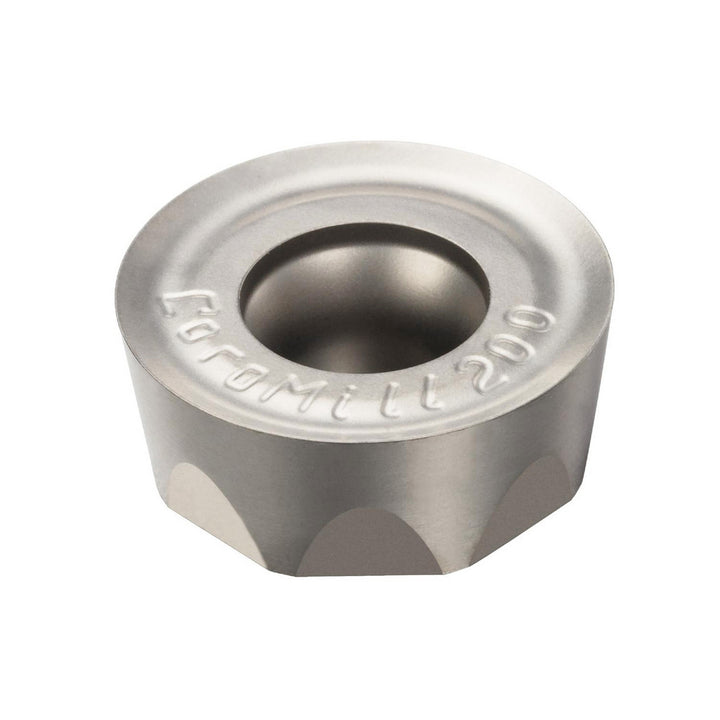

RCHT 13 04 00-KL H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5739892
MFR# 5739892ISO/ANSI# RCHT 13 04 00-KL H13ACat# RCHT 13 04 00-KL H13ASeries RCHT
$20.44List $25.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5739892 is a RCHT 13 04 00-KL H13A solid carbide indexable insert, grade H13A. Suited for cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Ansi codeRCHT 13 04 00-KL H13A
Chip breakerKL
Coating processUncoated
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityN331.32; R331.32; RA200
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code130400
Insert styleRCHT
Iso codeRCHT 13 04 00-KL H13A
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRCHT 13 04 00-KL H13A
Manufacturer gradeH13A
Material applicationCast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeK20; N15; S20
Maximum depth of cut0.0732
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
