Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 5739904
MFR# 5739904Series CoroMill 210
$833.05List $885.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description

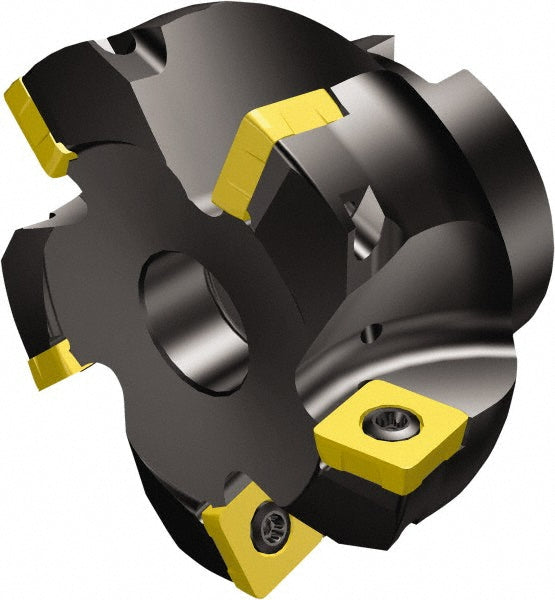

The Sandvik Coromant 5739904 indexable milling cutters. Series CoroMill 210.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR210-090412M
Complete insert compatibilityR210-090412M-
Coolant throughYes
Cutter styleRA210
Cutting directionRight Hand
Cutting edge length0.0472
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3209
Lead angle10
Maximum body diameter1.4449
Maximum cutting diameter1.4449
Maximum depth of cut0.0472
Number of cutter inserts5
Number of flutes5
Overall height1.9690
Pitch typeCoarse
RakePositive
Toolholder materialSteel
