Sandvik Coromant

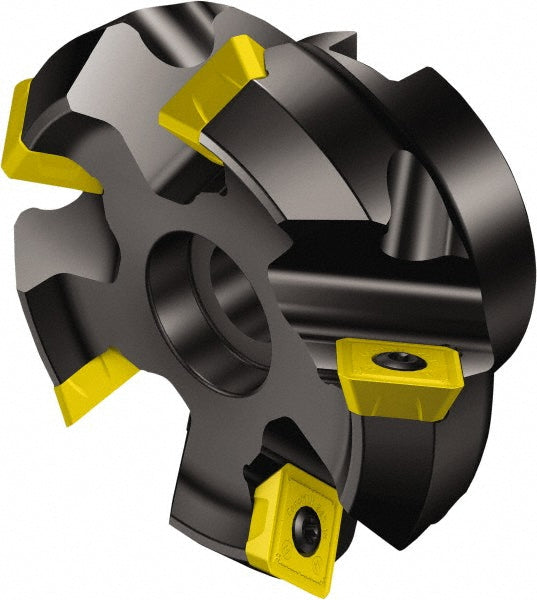

Indexable Milling Cutters - Sandvik Coromant 5740046
MFR# 5740046Series CoroMill 245
$1,436.41List $1,526.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes10
Description
The Sandvik Coromant 5740046 indexable milling cutters. Series CoroMill 245.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeR245-12T3..
Complete insert compatibilityR245-12T3..
Coolant throughNo
Cutter styleRA245
Cutting directionRight Hand
Cutting edge length0.2400
Hub diameter in1-1/2
Insert holding methodClamp; Screw
Keyway width0.6331
Lead angle45
Maximum body diameter4.0000
Maximum cutting diameter in4
Maximum depth of cut0.2400
Number of cutter inserts10
Number of flutes10
Overall height1.9685
Pitch typeCoarse
RakePositive
Toolholder materialSteel
