Sandvik Coromant

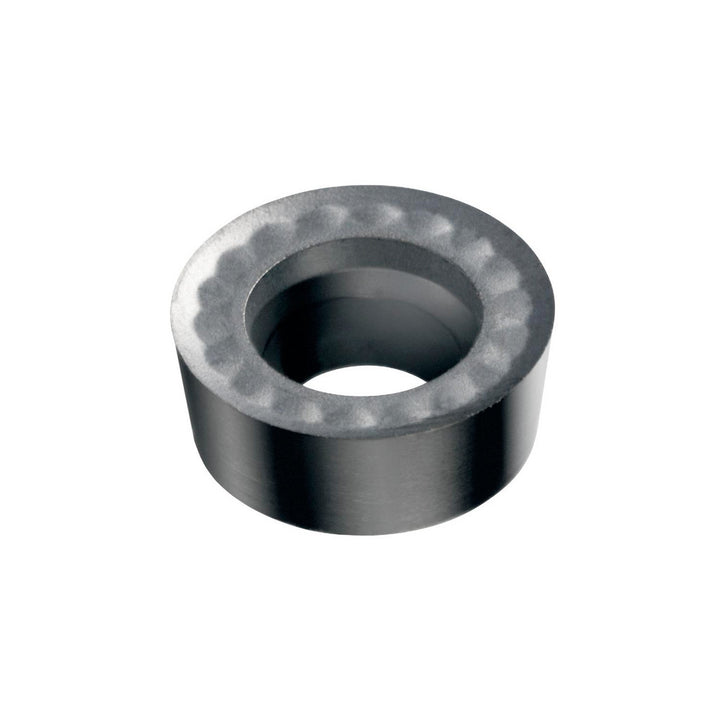

RCGX 10 T3 M0-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5740059
MFR# 5740059ISO/ANSI# RCGX 10 T3 M0-AL H10Series CoroTurn 107
$12.67List $16.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5740059 is a RCGX 10 T3 M0-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Hole diameter0.1732
Inscribed circle0.3937
Insert handNeutral
Insert holding methodScrew
Insert length in5/32
Insert materialCarbide
Insert shapeRound
Insert size code10T3
Insert styleRCGX
Insert thickness in5/32
Iso codeRCGX 10 T3 M0-AL H10
Length range0.0000 - 0.3000
Manufacturer gradeH10
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
