Sandvik Coromant

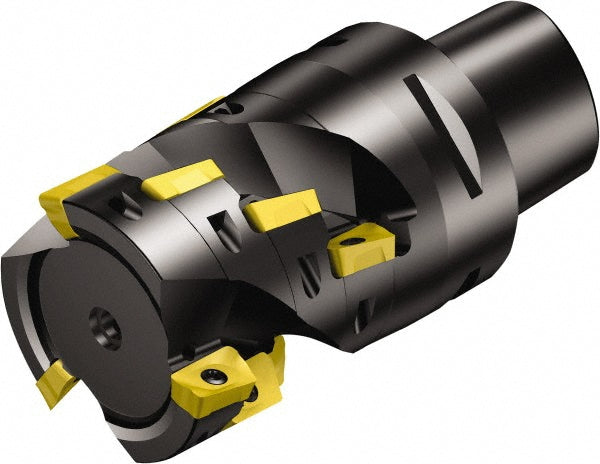

Indexable End Mills - Sandvik Coromant 5740074
MFR# 5740074Series CoroMill 390
$1,959.01List $2,045.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sandvik Coromant 5740074 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter2
End mill typeRamping
Head length4.3200
Insert compatibilityR390-18..
Insert holding methodScrew
Iso numberRA390-051C6-99L
Lead angle90
Maximum depth of cut3.9300
Maximum rpm7800
Modular connection sizeC6
Number of cutter inserts14
Number of flutes2
Overall length5.3840
Shank length1.0640
Shank typeModular Connection
Tool materialSteel
