Sandvik Coromant

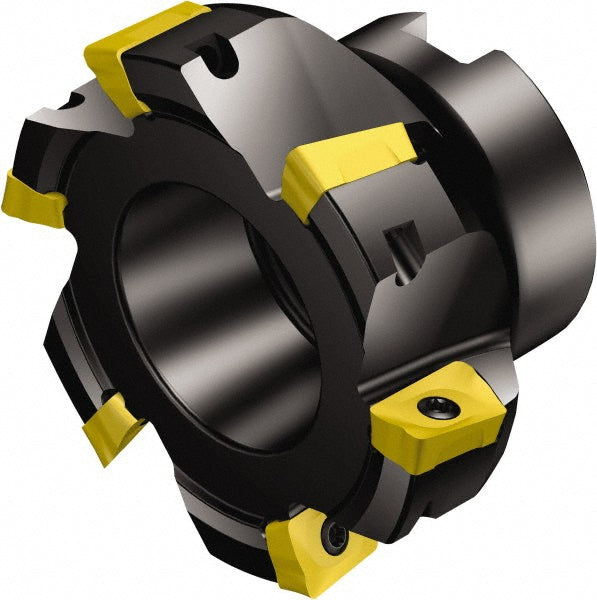

Indexable Milling Cutters - Sandvik Coromant 5740081
MFR# 5740081Series CoroMill 390
$789.75List $839.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Sandvik Coromant 5740081 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR390-11..
Complete insert compatibilityR390-11..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.3937
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3209
Lead angle90
Maximum body diameter1.9370
Maximum cutting diameter in2
Maximum depth of cut0.3937
Number of cutter inserts7
Number of flutes7
Overall height1.5750
Pitch typeCoarse
RakePositive
Toolholder materialSteel
