Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 5740090
MFR# 5740090Series CoroMill 390
$741.73List $788.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description

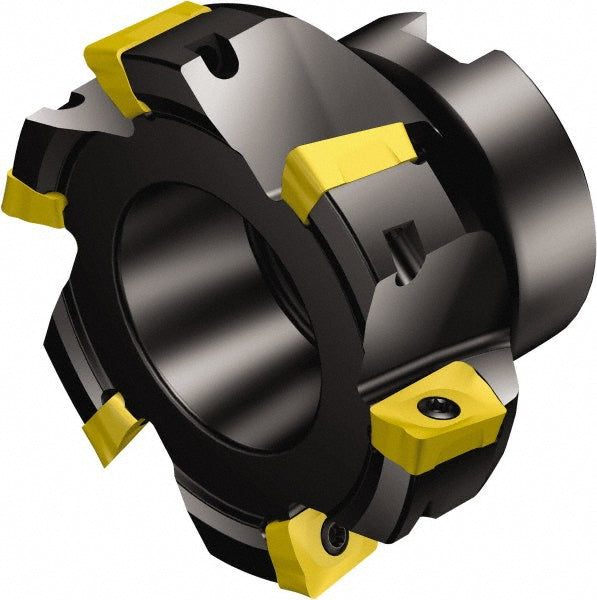

The Sandvik Coromant 5740090 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR390-11..
Complete insert compatibilityR390-11..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.3937
Hub diameter in3/4
Insert holding methodScrew
Keyway width0.3209
Lead angle90
Maximum body diameter1.9370
Maximum cutting diameter in2
Maximum depth of cut0.3937
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Pitch typeClose
RakePositive
Toolholder materialSteel
